재고 있음 인기 제품
7000-88281-0500500

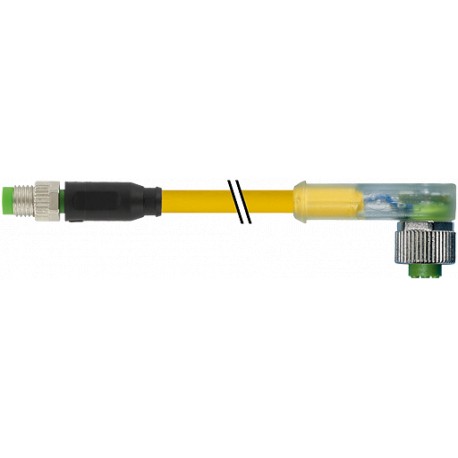

7000-88281-0500500 MURRELEKTRONIK M8 male 0° / M12 female 90° LED PUR 3x0.25 yellow UL/CSA + robot + drag ch..
$0.00USD
4585개 재고
주요 사양
AWG:similar to AWG 24
동안:4048879122177
형태:88281
코딩:M12, A-coded
공급업체 정보
MURRELEKTRONIK
제품: 57918
보통 2-3 영업일 내에 발송됩니다
품질 보장
빠른 배송
기술 지원
기술 사양
| 매개변수 | 가치 |
|---|---|
| AWG | similar to AWG 24 |
| 동안 | 4048879122177 |
| 형태 | 88281 |
| 코딩 | M12, A-coded |
| 방패 | no |
| eClass | 27279218 |
| 제품 번호: | 7000-88281-0500500 |
| 재료 | PUR |
| 외경 | 4.3 mm ±5% |
| 표준 | DIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8) |
| 케이블 종류 | 5 (PUR schweißfunkenbeständig) |
| 보호 | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| LED 디스플레이 | yellow/green |
| 재킷 색상 | yellow |
| 전봇대 개수 | 3-pole |
| 테스트 전압 | 2 500 V AC |
| 비틀림 속도 | 35 cycles/min |
| 색상(재킷) | yellow |
| 소재 그룹 | IEC 60664-1, category I |
| 포장 단위 | 1 |
| 비틀림 응력 | ±360°/m |
| 전선 절연 | PP (br, bl, bk) |
| 직경(심부) | 3 × 0.25 mm² |
| 재료(전선) | Cu wire, bare |
| 장착 방법 | inserted, tightened |
| 공칭 전압 | 300 V AC |
| 저항기(심) | max. 79 Ω/km (20 °C) |
| 승인(케이블) | cRUus (AWM-Style 20549/10493); CE conform |
| 잠금 재료 | Zinc die casting, save-cover coated |
| 포트 잠금 | Screw thread M8/M12 × 1 mm (recommended torque 0.4/0.6 Nm) self-securing |
| 오염도 | 3 |
| 압박 글랜드 | M8 (SW9), M12 (SW13) |
| 재질(가스켓) | FKM |
| 소재(재킷) | PUR (UL/CSA), welding spark |
| 작동 전압 | 24 V DC ±25% |
| 외피(재킷) | 4.3 mm ±5% |
| 온도 범위 | -25...+85 °C, depending on cable quality |
| 원산지 | DE |
| C-트랙 속성 | 10 Mio. |
| 케이블 무게 [g/m] | 26,40 |
| 재료(연락처) | Copper alloy |
| 열 저항 | flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant |
| 굽힘 반경(고정) | 5 × outer Ø |
| 건설(핵심) | 32 × 0.1 mm (multi-strand wire class 6) |
| 정격 서지 전압 | 0.8 kV |
| 내화학성 | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| 대체 제품: | Product ComparisonMale straight – female 90°M8 – M12, 3-pole2 × LED (PNP), (NPN) on requestArt-No. 7005 - M12/M8 Lite - (plastic hexagonal screw) on requestZinc die casting, save-cover coatedFurther cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm88281CablesNo./diameter of wires3 × 0.25 mm²Wire isolationPP (br, bl, bk)C-track properties10 Mio.Material (jacket)PUR (UL/CSA), welding sparkOuter Ø4.3 mm ±5%Bend radius (moving)10 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-25...+80 °CCable identification050Cable Type5 (PUR schweißfunkenbeständig)Approval (cable)cRUus (AWM-Style 20549/10493); CE conformCable weight [g/m]26,40Material (wire)Cu wire, bareResistor (core)max. 79 Ω/km (20 °C)Single wire Ø (core)0.1 mmConstruction (core)32 × 0.1 mm (multi-strand wire class 6)Diameter (core)3 × 0.25 mm²AWGsimilar to AWG 24Material (wire isolation)PPMaterial property (wire isolation)CFC-, halogen-, cadmium-, silicone- and lead-freeShore hardness (wire isolation)74 ±3 DWire-Ø incl. isolation1.25 mm ±5%Color/numbering of wiresbr, bk, blStranding combination3 wires twistedShieldnoMaterial (jacket)PURMaterial property (jacket)CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistantShore hardness (jacket)58 ±3 DOuter-Ø (jacket)4.3 mm ±5%Color (jacket)yellowchemical resistancegood resistance to oil, gasoline and chemicals (EN 60811-404)thermal resistanceflame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistantNominal voltage300 V ACTest voltage2 500 V ACCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-40...+80 °C, (+90 °C at max. 10 000 operating hours)Temperature range (mobile)-25...+80 °C, (+90 °C at max. 10 000 operating hours)Bend radius (fixed)5 × outer ØBend radius (moving)10 × outer ØNo. of bending cycles (C-track)max. 10 Mio. (25 °C)Traversing distance (C-track)max. 5 m (horizontal)Travel speed (C-track)max. 3.3 m/sAcceleration (C-track)max. 5 m/s²Torsion stress±360°/mNo. of torsion cyclesmax. 1 Mio. (25 °C)Torsion speed35 cycles/minJacket ColoryellowTechnical DataOperating voltage24 V DC ±25%Operating voltage (only UL listed)30 V DCRated surge voltage0.8 kVOperating current per contactmax. 4 ANo. of poles3-poleMaterial groupIEC 60664-1, category ICodingM12, A-codedLED displayyellow/greenLocking of portsScrew thread M8/M12 × 1 mm (recommended torque 0.4/0.6 Nm) self-securingCompression glandM8 (SW9), M12 (SW13)ProtectionIP65, IP66K, IP67 inserted and tightened (EN 60529)MaterialPURsuitable for corrugated tube (internal Ø)M12 (10 mm); M8 (6.5 mm)Locking materialZinc die casting, save-cover coatedGeneral dataStandardsDIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8)Mounting methodinserted, tightenedMaterial (contact)Copper alloyMaterial (contact surface)AuMaterial (gasket)FKMPollution Degree3Temperature range-25...+85 °C, depending on cable qualityCommercial datacountry of originDEcustoms tariff number85444290EAN4048879122177eClass27279218Packaging unit1 |
| 굽힘 반경(이동식) | 10 × outer Ø |
| 케이블 식별 | 050 |
| 현재 부하 용량 | to DIN VDE 0298-4 |
| 비틀림 주기 횟수 | max. 1 Mio. (25 °C) |
| 전선의 개수/직경 | 3 × 0.25 mm² |
| 단선 Ø (심) | 0.1 mm |
| 스트랜딩 조합 | 3 wires twisted |
| 관세 번호 | 85444290 |
| 가속도(C 트랙) | max. 5 m/s² |
| 주행 속도(C 트랙) | max. 3.3 m/s |
| 쇼어 경도(피복) | 58 ±3 D |
| 절연체 포함 전선 직경 | 1.25 mm ±5% |
| 전선의 색상/번호 | br, bk, bl |
| 재질(전선 절연) | PP |
| 온도 범위(고정) | -40...+80 °C |
| 재질(접촉면) | Au |
| 소재 특성(재킷) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant |
| 온도 범위(휴대용) | -25...+80 °C |
| 접점당 작동 전류 | max. 4 A |
| 횡단 거리(C 트랙) | max. 5 m (horizontal) |
| 굽힘 주기 횟수(C-트랙) | max. 10 Mio. (25 °C) |
| 쇼어 경도(와이어 절연) | 74 ±3 D |
| 재료 특성(전선 절연) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| 작동 전압 (UL 인증 제품에 한함) | 30 V DC |
| 골형 튜브(내경)에 적합 | M12 (10 mm); M8 (6.5 mm) |
제품 설명
M8 male 0° / M12 female 90° A-cod. LEDPUR 3x0.25 ye UL/CSA+robot+drag ch. 5m
주요 기능
- 산업 등급 품질
- RoHS 준수
- CE 인증
- 1년 보증
