HC-HS 2-D7-EBUS

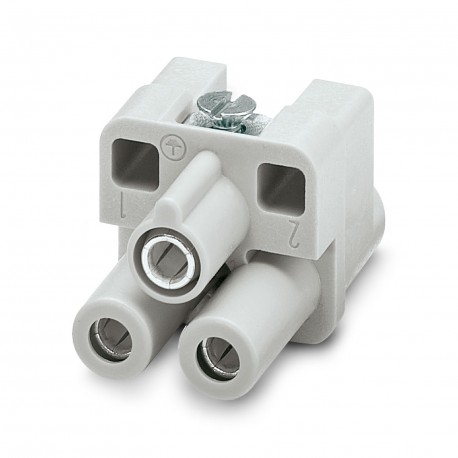

HC-HS 2-D7-EBUS 1586264 PHOENIX CONTACT Contact insert
$35.46USD
326개 재고
주요 사양
:Note regarding axial connection technology:Only for stranded wires. The specified conductor cross sections refer to the geometric cross section of the cable used.Cables with a geometric cross section which deviates significantly from the nominal cable cross section must be checked before use.The axial connection technology connection space is designed for fine strand cables according to VDE 0295 Class 5. Deviating cable structures (e.g., Class 6 cables) must be checked before use.Assembly instructionsBefore assembly, ensure that the tapered screw is fully loosened (chamber is open). Cables must not be twisted. The wires must be pushed into the contact chamber as far as they will go (until the insulation touches the contact). Hold the wires in position and tighten using an Allen key. The used wire end must be cut off before reconnection. The terminal screw must only be retightened once to prevent the litz wires from breaking. To prevent damage to the contact, the wire/cable must be mechanically held at an appropriate distance from the connection point (e.g., when used in a plate cut out). For notes on correct execution, see DIN VDE 0100-520:2003-06. Unused connections must be tightened with maximum torque.
유형:D7
테스트:DIN VDE 0627/86
너비:21 mm
공급업체 정보
제품: 0
보통 2-3 영업일 내에 발송됩니다
품질 보장
빠른 배송
기술 지원
기술 사양
| 매개변수 | 가치 |
|---|---|
| Note regarding axial connection technology:Only for stranded wires. The specified conductor cross sections refer to the geometric cross section of the cable used.Cables with a geometric cross section which deviates significantly from the nominal cable cross section must be checked before use.The axial connection technology connection space is designed for fine strand cables according to VDE 0295 Class 5. Deviating cable structures (e.g., Class 6 cables) must be checked before use.Assembly instructionsBefore assembly, ensure that the tapered screw is fully loosened (chamber is open). Cables must not be twisted. The wires must be pushed into the contact chamber as far as they will go (until the insulation touches the contact). Hold the wires in position and tighten using an Allen key. The used wire end must be cut off before reconnection. The terminal screw must only be retightened once to prevent the litz wires from breaking. To prevent damage to the contact, the wire/cable must be mechanically held at an appropriate distance from the connection point (e.g., when used in a plate cut out). For notes on correct execution, see DIN VDE 0100-520:2003-06. Unused connections must be tightened with maximum torque. | |
| 유형 | D7 |
| 테스트 | DIN VDE 0627/86 |
| 너비 | 21 mm |
| 키 | 34.8 mm |
| 길이 | 21 mm |
| 시리즈 | HC-HS |
| 일반적인 | for HC-D7 housing, axial connection 2.0 mm, Allen key |
| 애플리케이션 | Power |
| 제품 유형 | Contact insert with a fixed no. of positions |
| 조립 참고 사항 | To ensure correct use, installation in housing with IP54 protection or better is required |
| 정격 전류 | 40 A |
| 기사 수정 | 04 |
| 접촉 직경 | 4 mm |
| 접촉 재료 | Copper alloy |
| 육각형 소켓 | SW2,0 |
| 연락처 | 1 - 2 |
| 조임 토크 | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| 연결 프로필 | 2+PE |
| 오염 정도 | 3 |
| 치수 도면 | |
| 직위 수 | 2 |
| 정격 서지 전압 | 6 kV |
| 과전압 범주 | III |
| 연결 기술 | Axial screw connection |
| 접촉 재료 유형 | turned |
| 전원 접점 수 | 2 |
| 정격 전압(III/3) | 400 V |
| 도체 단면적 | 4 mm² ... 10 mm² (The cross section specification refers to the geometric cross section of the cable used) |
| 접촉 캐리어 재료 | PC |
| 접촉면 재질 | Ag |
| 삽입/제거 주기 | ≥ 500 |
| 연결 단면 AWG | 10 ... 8 |
| 주변 온도(작동) | -40 °C ... 125 °C (including heating up of contacts) |
| 표준에 따른 연결 | IEC / EN |
| 건설 및 시험 규정 | DIN VDE 0627/86 |
| UL 94에 따른 난연성 등급 | V0 |
| 개별 전선의 피복 벗기기 길이 | 8 mm +1 mm |
제품 설명
Contact insert, number of poles: 2+PE, size: D7, power contacts: 2, Female, Axial screw connection, 400 V, 40 A, 4 mm² ... 10 mm², Application: Power
